Linux: how to adjust your microphone volume using KDE
User: kmaclean
Date: 1/1/2010 11:36 am
Views: 24344
Rating: 6

To set your microphone volume using Linux, you need use your distro's mixer.  To start the KDE mixer (which is included with the "kdemultimedia" package), select:

    System>Multimedia>KMix

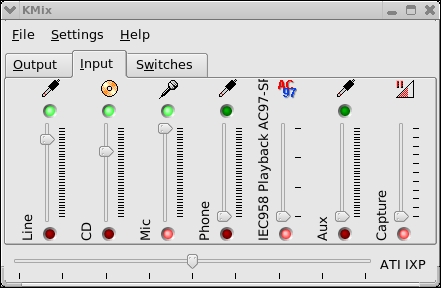

and then click the Input tab:


Move the "Mic" slider up or down to increase or decrease your microphone's recording volume.

Determining optimal microphone volume settings

First make sure your microphone slider is set to it's mid-point.  Then click Record in the VoxForge Speech Submission Application and begin speaking in your normal voice for a few seconds, and then click Stop.

Look at the Waveform Display for the recording you just created.   Adjust your microphone volume up or down depending on the size of the Waveforms.

If your Sound Level is too Low

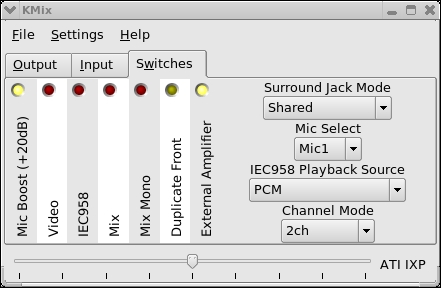

If you have increased your volume to the maximum and still are not getting an acceptable sound level, you may need to either increase the volume settings or turn on the 'Mic Boost' switch in your Linux mixer.  Select the 'Switches' tab of the KMix utility and then select 'Mic Boost (+20dB)' (see image below):


Try re-recording some speech - you might have to reduce your microphone volume to compensate for the Mic Boost.

If your Sound Level is too High

If the waveforms in the display have been clipped off at the top or bottom, then your volume is too high.  Reduce your microphone volume, and re-record some speech.  It is better to err on the side of having a lower volume level from a speech recognition perspective - clipped speech sounds distorted.  But you also need it to be loud enough such that you can see your speech waveforms in the display (i.e. you should be able to see "squiggly" lines that correspond to your speech).

Adjusting your Playback Volume

Once you are satisfied that the volume is acceptable, try playing the file back by clicking Play.  You might need to adjust the Master Volume and the PCM Volume sliders for your speakers in under the KMix "Output" tab.
